Your production flow: now revolutionized with vision and artificial intelligence.

The fastest and most accurate 3D vision system on the market for real-time industrial applications.

We know that production specialists don’t want to worry about technology. They want easy implementation, performance, and reliability.

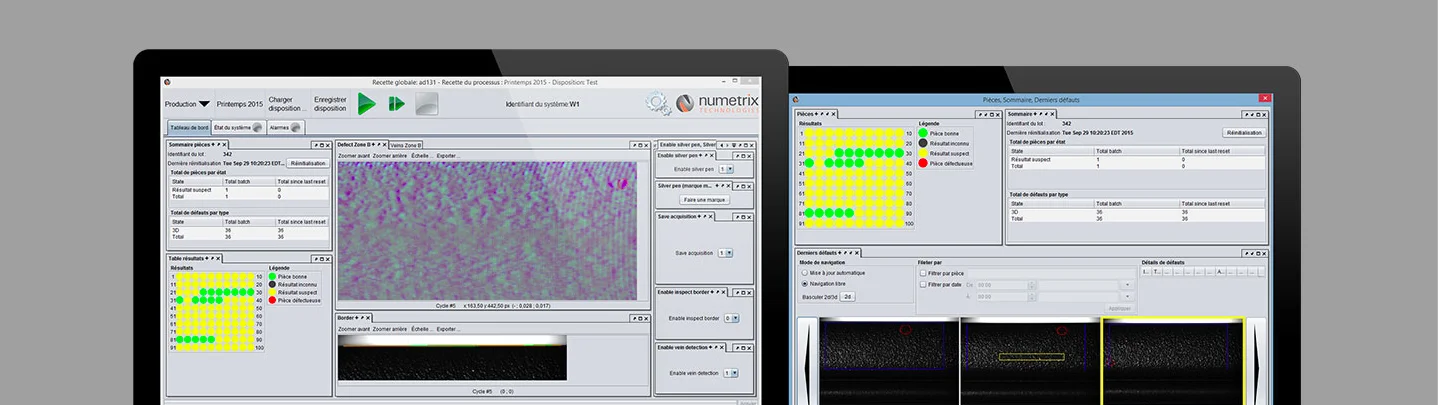

Coupling Numetrix’s NX3D Patented Multispectral Volumetric Encoding digitizer to our dedicated Studio software permits your production line to fully benefits from the future of artificial intelligence. Now.

NX3D Digitizer:
greater accuracy where it counts

Artificial intelligence vision

Works on
black surfaces

Unlike laser lines profilers, Numetrix digitizers are not limited by speckle effect so they work on black surfaces (i.e tires).

AI vision and manufacturing

Movement
resistant

Keep your processes as they are. Numetrix MVE technology acquires full-frame 3D snapshots in just 50μs, allowing vibrations and part speed up to 2.8 m/s.

outside-of-box technology

The fastest
3D microscope

Numetrix structured “white” light technology is unbeatable in a real production environnement, with 40 μm lateral and 6 μm depth resolution.

NX3D Digitizer Specification

NX3D-15
  • Field of view
  • 15 x 11 mm
  • Depth of field
  • 3 mm
  • Pixel size
  • 12.5 µm
  • Depth resolution
  • 5 µm
  • Working distance
  • 75 mm
  • Maximum object speed
  • 0.8 m/s
  • Exposure time
  • 50 µs
  • Frame rate
  • 12 fps
  • Size (L x W x H)
  • 525 x 433 x 95 mm
  • Data interface
  • GigE Vision
  • Control interface
  • - 4 digital input - 4 digital output - RS-422/RS-485
NX3D-50
  • Field of view
  • 50 x 39 mm
  • Depth of field
  • 15 mm
  • Pixel size
  • 42 µm
  • Depth resolution
  • 9 µm
  • Working distance
  • 315 mm
  • Maximum object speed
  • 2.8 m/s
  • Exposure time
  • 50 µs
  • Frame rate
  • 12 fps
  • Size (L x W x H)
  • 548 x 581 x 179 mm
  • Data interface
  • GigE Vision
  • Control interface
  • - 4 digital input - 4 digital output - RS-422/RS-485

Our world-leading quality control technology offers custom AI assisted 3D machine vision surface inspection solutions to improve quality assurance, increase productivity and profits. Our technology bridges Industry 4.0 and Industry 5.0 with machine vision systems data so advanced and precise that top tire manufacturers in the world trust us in a highly regulated and fiercely competitive field.

Let our experts exceed your expectations.

Proficiency is only a small part of exceeding your expectations: our capacity to unite AI vision and industrial knowledge make a world of difference. Your project success is assured by Numetrix proven track record in challenging environment

Let's talk about your project
